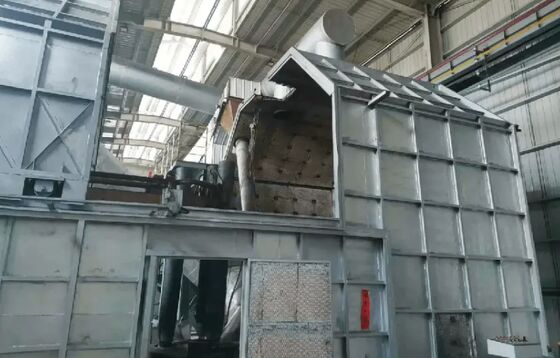

Aluminum Ash Treatment Equipment with 1550-1650℃ Melting Temperature, 750-850kWh/t Power Consumption, and 60-160t Daily Treatment Capacity
| Herkunftsort | China |
|---|---|
| Markenname | Shaanxi Chengda |
| Zertifizierung | ISO 9001 |
| Modellnummer | Verhandeln Sie basierend auf der Verarbeitungskapazität der Ausrüstung |
| Min Bestellmenge | 1 Einheit |
| Preis | The price will be negotiated based on the technical requirements and supply scope of Party A |
| Verpackung Informationen | Besprechen Sie die spezifischen Anforderungen von Partei A |
| Lieferzeit | 2 Monate |
| Zahlungsbedingungen | L/C, T/T, Western Union |
| Versorgungsmaterial-Fähigkeit | Vervollständigen Sie die Produktionslieferkette, liefern Sie pünktlich und erfüllen Sie Qualitätssta |
Produktdetails
Produkt-Beschreibung
Introduction to Equipment and Parameters
I. Process Principle
Using aluminum ash (containing Al₂O₃, metallic Al, AlN and a small amount of salts) and CaO (lime) as raw materials, solid-phase/liquid-phase reactions occur in an electric furnace at high temperature of 1550–1650℃:
- Main reaction: 3CaO + Al₂O₃ → 3CaO·Al₂O₃ (calcium aluminate)
- Side reactions: Oxidation/reduction conversion of AlN and metallic Al; volatilization and removal of salts
- Product: Pre-melted calcium aluminate (steelmaking refining slag, deoxidizer/desulfurizer)
II. Core Equipment Composition (Complete Production Line)
1. Pretreatment System
- Crushing and Screening Machine: Crushes aluminum ash to ≤50mm, removes iron and impurities
- Batching Station: Automatic metering of aluminum ash, CaO, reducing agent (coke) and modifier (MgO)
- Ratio: Aluminum ash 40–65%, CaO 35–45%, MgO 0–15%
- Mixer/Briquetting Machine: Mixes materials evenly; briquetting is available to increase melting speed
2. Core Equipment: Calcium Aluminate DC Electric Arc Furnace
Structure
- Furnace body: Round/square, steel shell + composite refractory lining (corundum-mullite/magnesia-chrome brick)
- Electrode: Graphite electrode (double/three electrodes)
- Power supply: DC rectifier power supply (1000–10000kVA)
- Furnace tilting mechanism: Hydraulic tilting (for slag discharge)
- Cooling system: Water cooling for furnace shell and electrode chuck
- Flue gas system: Purification of high-temperature flue gas, fluoride and salt mist
Main Models and Parameters (DC Furnace)
| Parameter | Typical Value (3000kVA / 6300kVA) |
|---|---|
| Transformer Capacity | 3000kVA / 6300kVA |
| Operating Voltage | 150–300V |
| Operating Current | 8–15kA / 15–25kA |
| Melting Temperature | 1550–1650℃ |
| Melting Cycle | 45–60min/heat |
| Daily Aluminum Ash Treatment Capacity | 60–80t / 120–160t |
| Power Consumption | 750–850kWh/t product |
| Electrode Consumption | 3–5kg/t (40% lower for DC than AC) |
| Lining Service Life | 300–500 heats |
Technical Advantages (DC vs AC)
- Electrode consumption reduced by 40%
- No reactive power compensation required, lower investment
- Noise reduced by 10–20dB
- Strong electromagnetic stirring, uniform composition and fast melting speed
- Insulating shell easily formed in case of power failure, protecting furnace lining
3. Post-treatment System
- Slag Discharge/Cooling: Tapping of hot slag → water quenching/air cooling → crushing
- Crushing and Screening Line: Jaw crusher + roller crusher + vibrating screen
- Finished particle size: 1–10mm, 10–50mm (for steelmaking)
- Overscreened powder returned to furnace for remelting
- Storage and Packaging: Finished product silo, automatic packaging (25/50kg/bulk bag)
4. Environmental Protection Supporting Facilities
- Flue Gas Purification:
- Quench tower (temperature controlled below 200℃)
- Bag filter (fluoride adsorption)
- Alkaline washing tower (removal of HCl, F⁻ and salt mist)
- Wastewater: Cooling circulating water + small amount of acid-base neutralization
- Solid Waste: Almost no secondary waste residue (full conversion)
III. Product: Calcium Aluminate (Finished Product Indexes)
- Main phases: 3CaO·Al₂O₃, 12CaO·7Al₂O₃
- Typical composition (wt%):
- Al₂O₃: 55–65%
- CaO: 30–40%
- MgO: 2–5%
- SiO₂: ＜3%
- F⁻, S, P: ＜0.1%
- Application: Pre-melted refining slag for steelmaking, high-efficiency desulfurizer, deoxidizer
IV. Technical Features
- Resource utilization: Turns aluminum ash into treasure, Al₂O₃ utilization rate >90%
- Harmless treatment: Decomposition of AlN, removal of salts, solidification of heavy metals
- High efficiency: Short single-heat cycle, high continuity and automation
- Low consumption: Significantly lower power and electrode consumption of DC furnace than traditional processes
V. Selection Suggestions
- Small-scale line: 1250–3000kVA DC furnace, daily treatment capacity 30–80t aluminum ash
- Medium-scale line: 3000–6300kVA DC furnace, daily treatment capacity 80–160t aluminum ash
- Large-scale line: 6300–10000kVA DC furnace, daily treatment capacity 160–300t+ aluminum ash
